3 - 45DigiGate-700

™

for Windows

- User’s Guide

DigiGate-700

for Windows

™ ®

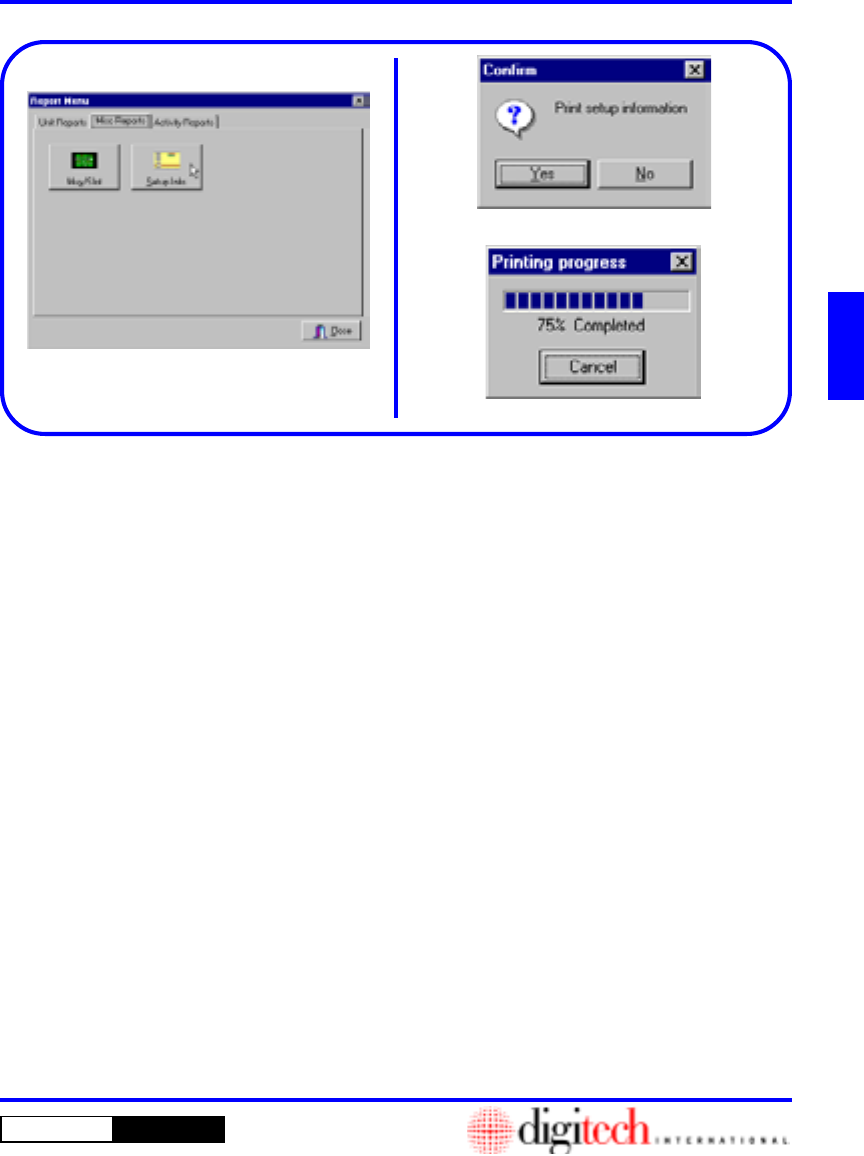

Figure 3-91

Figure 3-92

1. From the

Main Menu

, Figure 3-46, Page 3-24,

Click on the

Report

button to open the

Report

window. Click on the

Misc Reports

tab. Figure 3-91.

2. Click on the

Setup Info

. button.

NOTE: The

Setup Info

is a series of reports

that show your system configuration and print

as a batch. It is a good idea to print and store

these reports after your system is set up and

running properly. The information these reports

contain can aid our Service Department in

resolving any problems that may occur at a later

date.

3. This will open the

Confirm

window with the

prompt Print setup information.

Figure 3-92.

4. Click on the

Yes

button to print the reports or

on the

button to return to the

Report

5. Clicking on the

Yes

button will open the

Windows 95

window where you can

select printers, etc.

6. After making printer and page selections, Click

on the

button to print the reports or on the

Cancel

button to return to the

Report Menu

7. Clicking on the

button will open the

Printing progress

window with a progress

bar and prompt to show the status of the print

job. Figure 3-93.

8. Clicking on the

Cancel

button will stop output

to the printer and return you to the

Report

Setup Info

Figure 3-93
