2 - 16 Setting Up a New Site

DigiGate-700

for Windows

™ ®

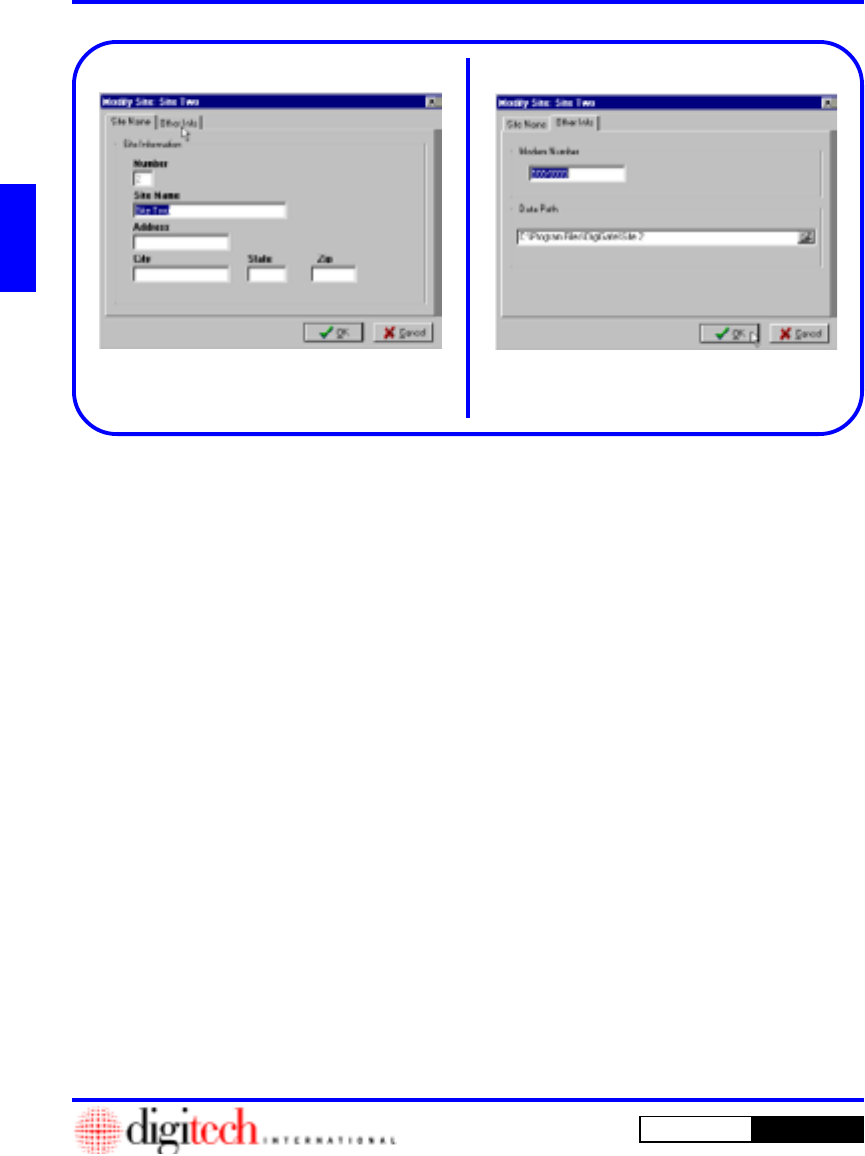

Figure 2-30

Figure 2-31

4. The

Modify Site

screen opens with the

Site

Name

tab active. This screen holds the Site

Number, Site Name, and Address information.

Figure 2-30.

5. Enter the information requested and click on the

Other Info

tab.

6. This screen holds the phone number to the

modem at the site, if this is a remote site, and

the location of the Unit and Tenant data files for

this site. Figure 2-31.

7. For a remote site, enter the telephone number of

the modem at the remote site in the

Modem

Number

field. If this is a headquarters or local

site, leave this field blank.

8. The

Data Path

field will hold the location of

the Unit and Tenant files for this site. The data

path was set up before shipping your software

and has been created on your PC during

installation of the program. DO NOT

CHANGE THIS INFORMATION UNLESS

DIRECTED TO DO SO!

9. Click on the

OK

button to accept the changes or

on the

Cancel

button to abandon the change

and return to the

Define Sites

selection screen.

NOTE: Repeat steps 3 - 9 for each site listed

on the

Define Sites

selection screen.

Figure 2-29, Page 2-15.
